Results¶

Metrics¶

Regression¶

GIoU¶

During training and in log entry you can find GIoULoss = 1 - GIoU as GIoU Loss. The metric used for comparison is GIoU: 1 - GIoULoss = GIoU

RMSE¶

RMSE same value as during training, except variance due to dropout.

Classification¶

Accuracy¶

Regular accuracy: ACC = (TP + TN)/(TP + TN + FP + FN)

F1¶

Harmonic mean of Precision and recall: F1 = TP / (TP + (FN + FP)/2)

Models that solve a single task¶

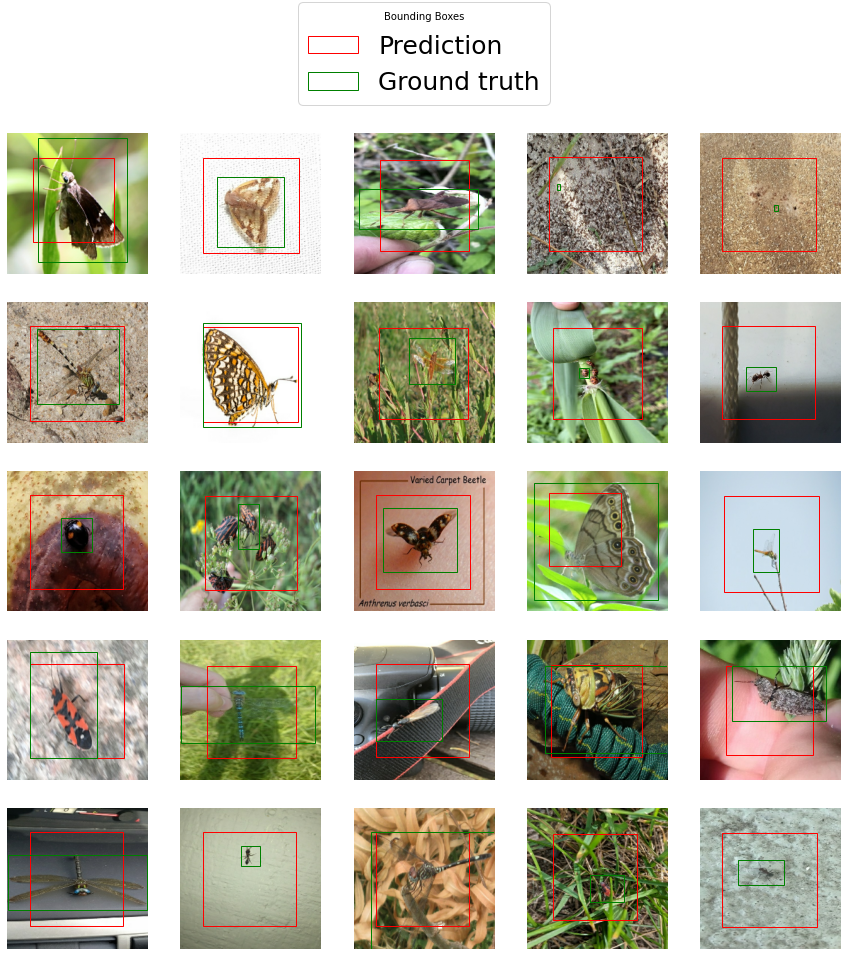

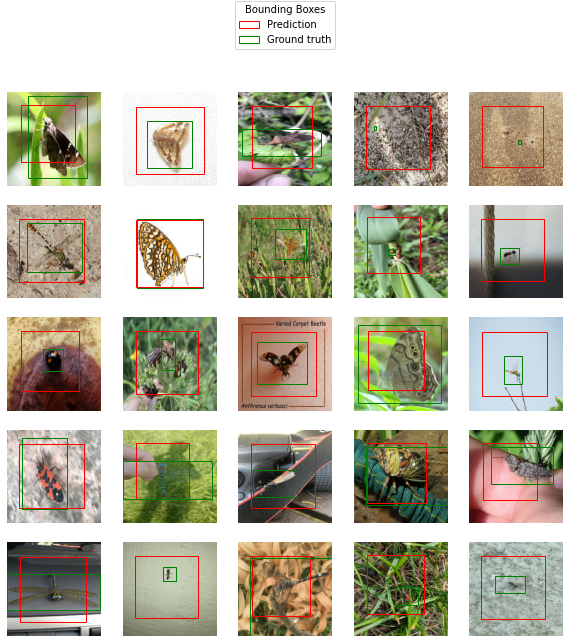

Regression (Reg)¶

Default dataset (Reg1)¶

INet¶

###########################
    GIoU Loss:   0.6161582
    RMSE Loss:   25.917557

MobileNet¶

###########################
    GIoU Loss:   0.61227506
    RMSE Loss:   25.372694

VGG-16¶

###########################
    GIoU Loss:   0.947507
    RMSE Loss:   24.218405

Result¶

Arch	GIoU	RMSE
INet	0.3838	25.9176
MobileNet	0.3877	25.3727
VGG-16	0.0525	24.2184

Augmented dataset (Reg2)¶

INet¶

###########################
    GIoU Loss:   0.6330171
    RMSE Loss:   26.344194

MobileNet¶

##########################
    GIoU Loss:   0.43982178
    RMSE Loss:   17.006126

VGG-16¶

##########################
    GIoU Loss:   1.399976
    RMSE Loss:   40.743893

Result:¶

Arch	GIoU	RMSE
INet	0.3670	26.3442
MobileNet	0.5602	17.0061
VGG-16	-0.4000	40.7438

Classification (Clf)¶

Default dataset (Clf1)¶

INet¶

##########################
    Accuracy:    0.6422222222222222
    f1 score:    0.6353292590535011

MobileNet¶

##########################
    Accuracy:    0.8511111111111112
    f1 score:    0.8462153544896847

VGG-16¶

##########################
    Accuracy:    0.84
    f1 score:    0.8367397903530476

Result:¶

Arch	Accuracy	f1
INet	0.6422	0.7793
MobileNet	0.8511	0.8462
VGG-16	0.84	0.8367

Augmented dataset (Clf2)¶

INet¶

##########################
    Accuracy:    0.6422222222222222
    f1 score:    0.62984677235293

MobileNet¶

##########################
    Accuracy:    0.8333333333333334
    f1 score:    0.8261255977635148

VGG-16¶

##########################
    Accuracy:    0.8466666666666667
    f1 score:    0.8438866903702877

Result:¶

Arch	Accuracy	f1
INet	0.6422	0.6298
MobileNet	0.8333	0.8261
VGG-16	0.8467	0.8439

Uncropped dataset (Clf3)¶

MobileNet¶

##########################
    Accuracy:    0.7844444444444445
    f1 score:    0.779331433620758

Result:¶

Arch	Accuracy	f1
MobileNet	0.7844	0.7793

Models that solve two tasks at the same time¶

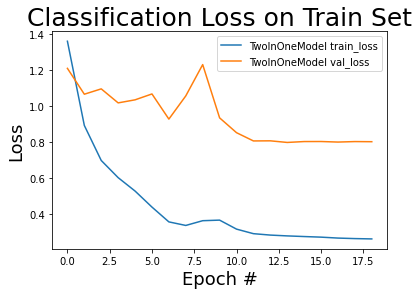

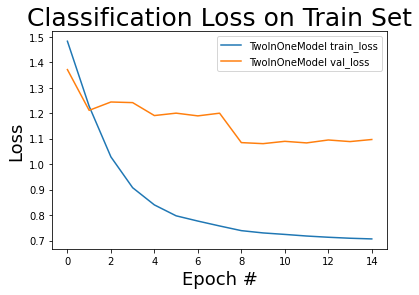

2-Head-Predictor (2Head)¶

Default dataset (2Head1)¶

INet¶

##########################
Regression:
    GIoU Loss:   0.64344555
    RMSE Loss:   24.211178
Classification:
    Accuracy:    0.49333333333333335
    f1 score:    0.4762167417804296

MobileNet¶

##########################
Regression:
    GIoU Loss:   1.4751697
    RMSE Loss:   39.193527
Classification:
    Accuracy:    0.7311111111111112
    f1 score:    0.7224772507688828

VGG-16¶

##########################
Regression:
    GIoU Loss:   1.5730777
    RMSE Loss:   43.680496
Classification:
    Accuracy:    0.17333333333333334
    f1 score:    0.0590909090909091

Result:

Classification:

Arch	Accuracy	f1
INet	0.4933	0.4762
MobileNet	0.7311	0.7793
VGG-16	0.1733	0.0591

Localization:

Arch	GIoU	RMSE
INet	0.3566	24.2112
MobileNet	-0.4751	39.1935
VGG-16	-0.5731	43.6805

Augmented dataset (2Head2)¶

[x] INet
[x] MobileNet
[x] VGG-16

INet¶

##########################
Regression:
    GIoU Loss:   0.6958105
    RMSE Loss:   21.909544
Classification:
    Accuracy:    0.48444444444444446
    f1 score:    0.4625029774807487

MobileNet¶

##########################
Regression:
    GIoU Loss:   0.63962024
    RMSE Loss:   20.518587
Classification:
    Accuracy:    0.7555555555555555
    f1 score:    0.7496034996537605

VGG-16¶

##########################
Regression:
    GIoU Loss:   1.4623789
    RMSE Loss:   38.729637
Classification:
    Accuracy:    0.78
    f1 score:    0.77794664790425

Result:

Classification:

Arch	Accuracy	f1
INet	0.4844	0.4625
MobileNet	0.7555	0.7496
VGG-16	0.7800	0.7779

Localization:

Arch	GIoU	RMSE
INet	0.3042	24.2111
MobileNet	0.3604	20.5186
VGG-16	-0.4624	38.7296

Comparisons¶

(best Reg) MobileNet + (best Clf) MobileNet¶

Classification:
 #########################
    Accuracy:    0.5288888888888889
    f1 score:    0.5097587081088926

Result:¶

2-S: 2 Stage method
2-S-1: 2 Stage without retraining (BBReg: MobileNet, Clf: MobileNet)
2-S-2: 2 Stage with clf retrained (BBReg: MobileNet, Clf: INet)
2-S-3: 2 Stage with clf retrained (BBReg: MobileNet, Clf: MobileNet)
2-Head: 2-Head MobileNet
Clf3: Classifier trained on original images

Classification:¶

Arch	Accuracy	f1
Clf3	0.7844	0.7793
2-S-1	0.5289	0.5097
2-S-2	0.5289	0.5269
2-S-3	0.5666	0.5661
2-Head	0.7555	0.7496

Localization:¶

Arch	GIoU	RMSE
Clf3
2-S-1	0.3877	25.3727
2-S-2	0.3877	25.3727
2-S-3	0.3877	25.3727
2-Head	0.3604	20.5186

RaspberryPi¶

The trained models have been optimized to run on a RaspberryPi micro computer. To do so quantization techniques have been applied, those have been reviewed in the paper.

Inference tests¶

Original:¶

Model evaluation for: "independent":
Classification:
 ===================================
    Accuracy:   0.916
    f1 score:   0.9167668857681328
Localization:
 ===================================
    GIoU:   0.43616188
    RMSE:   17.347866
Testing inference for 5 samples for: "independent":
AVG inference time: 2.4359699999999997s.

Model evaluation for: "two-stage":
Classification:
 ===================================
    Accuracy:   0.544
    f1 score:   0.5522557272067077
Localization:
 ===================================
    GIoU:   0.43616188
    RMSE:   17.347866
Testing inference for 5 samples for: "two-stage":
AVG inference time: 3.467743s.

Model evaluation for: "single-stage":
Classification:
 ===================================
    Accuracy:   0.92
    f1 score:   0.9196824463343246
Localization:
 ===================================
    GIoU:   0.62672853
    RMSE:   19.672493
Testing inference for 5 samples for: "single-stage":
AVG inference time: 1.2404s.

TFLite:¶

Model evaluation for: "independent":
Classification:
 ===================================
    Accuracy:   0.92
    f1 score:   0.9209747544826291
Localization:
 ===================================
    GIoU:   0.44598112
    RMSE:   18.026241
Testing inference for 5 samples for: "independent":
AVG inference time: 1.324131s.


Model evaluation for: "two-stage":
Classification:
 ===================================
    Accuracy:   0.52
    f1 score:   0.5284798070186199
Localization:
 ===================================
    GIoU:   0.44598112
    RMSE:   18.026241
Testing inference for 5 samples for: "two-stage":
AVG inference time: 2.34496s.


Model evaluation for: "single-stage":
[====================] 100%
Classification:
 ===================================
    Accuracy:   0.608
    f1 score:   0.5803820077663839
Localization:
 ===================================
    GIoU:   0.81673026
    RMSE:   21.786606
Testing inference for 5 samples for: "single-stage":
AVG inference time: 0.731425s.
